THE ART OF DIGITAL DISC MANUFACTURING
About UHQCD
Ultimate High-Quality Compact Disc. A different way to replicate the physical surface of a CD—designed for more precise pit geometry while remaining compatible with existing CD players.
Introduced decades after the compact disc's debut in 1982, UHQCD (Ultimate High Quality Compact Disc) takes a different approach to disc replication. The technology was developed by Japan's Memory-Tech and associated partners to address physical replication accuracy rather than to change the CD's underlying digital audio format.
Earlier high-quality CDs focused on the choice of substrate and reflective materials. UHQCD goes further by changing the way the disc's microscopic data pattern is formed. The recorded programme remains standard CD-compatible digital audio.
AudioNautes Recordings uses this medium for selected collector editions, including its premium Gold Series, alongside reel tapes, LPs and Crystal Discs.
AudioNautes' focus on original recording provenance
Behind the technology
How UHQCD discs are made.
01 · Conventional CDs
Injection moulding
A heated polycarbonate substrate is pressed against a metal stamper carrying the encoded pit-and-land pattern. The process is fast and well suited to high-volume production.
02 · UHQCD
Photopolymer casting
Liquid photopolymer flows into the stamper's microscopic features and is cured using light. A polycarbonate layer adds physical protection.
03 · Reflective layer
Selected alloys
UHQCD production can incorporate high-reflectivity alloy layers. Specific materials vary by release; a silver-alloy layer should not be confused with a gold-stamped cover.

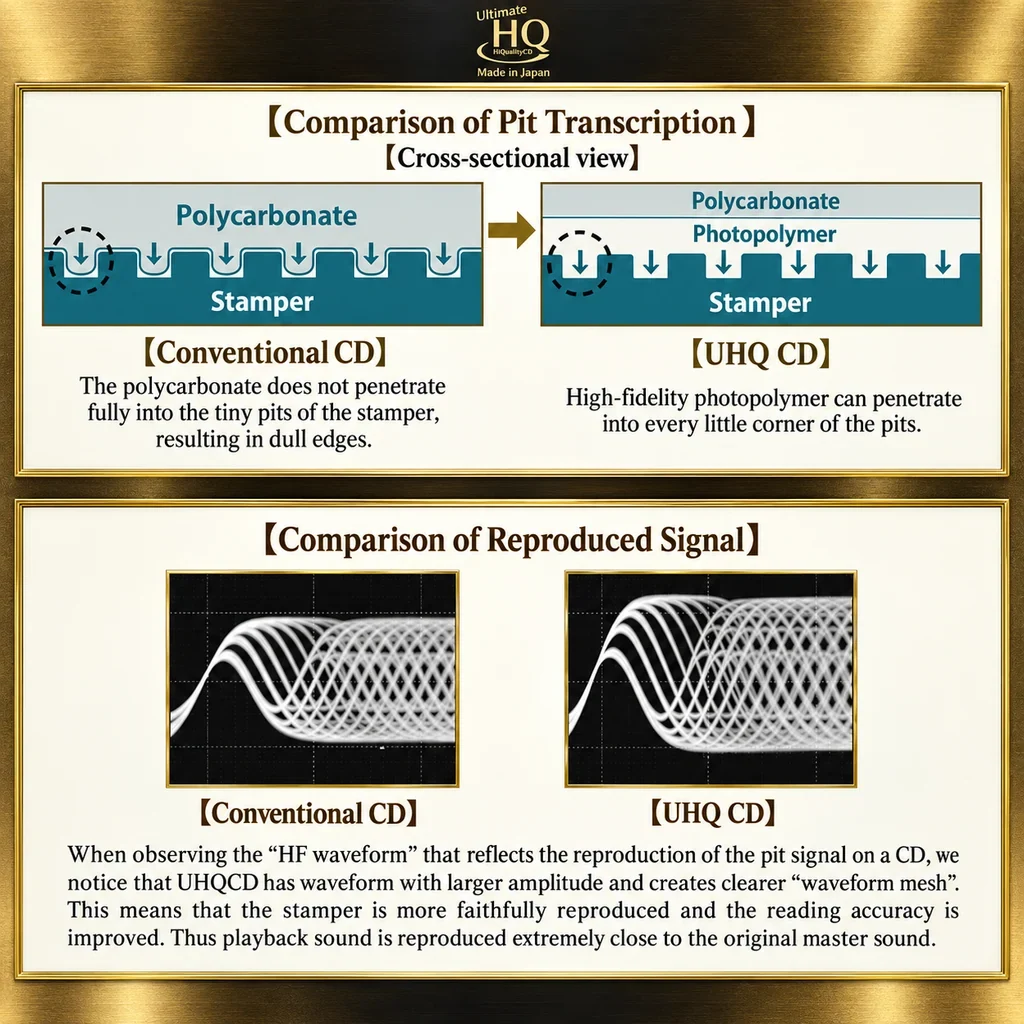

Illustrative comparison of physical pit replication and optical readout. The diagrams are explanatory, not independently measured performance results.
Japanese UHQCD and reflective-layer presentation
Technology specifications
Premium materials. Standard CD playback.
UHQCD is designed to improve the precision of physical disc manufacturing. The resulting disc still conforms to the conventional audio CD standard and can be played in an ordinary CD player without special hardware.
Although closer replication of the stamper is the manufacturing objective, differences in audible performance cannot be guaranteed for every listener or playback system. UHQCD does not itself increase the native Red Book CD sample rate or bit depth.

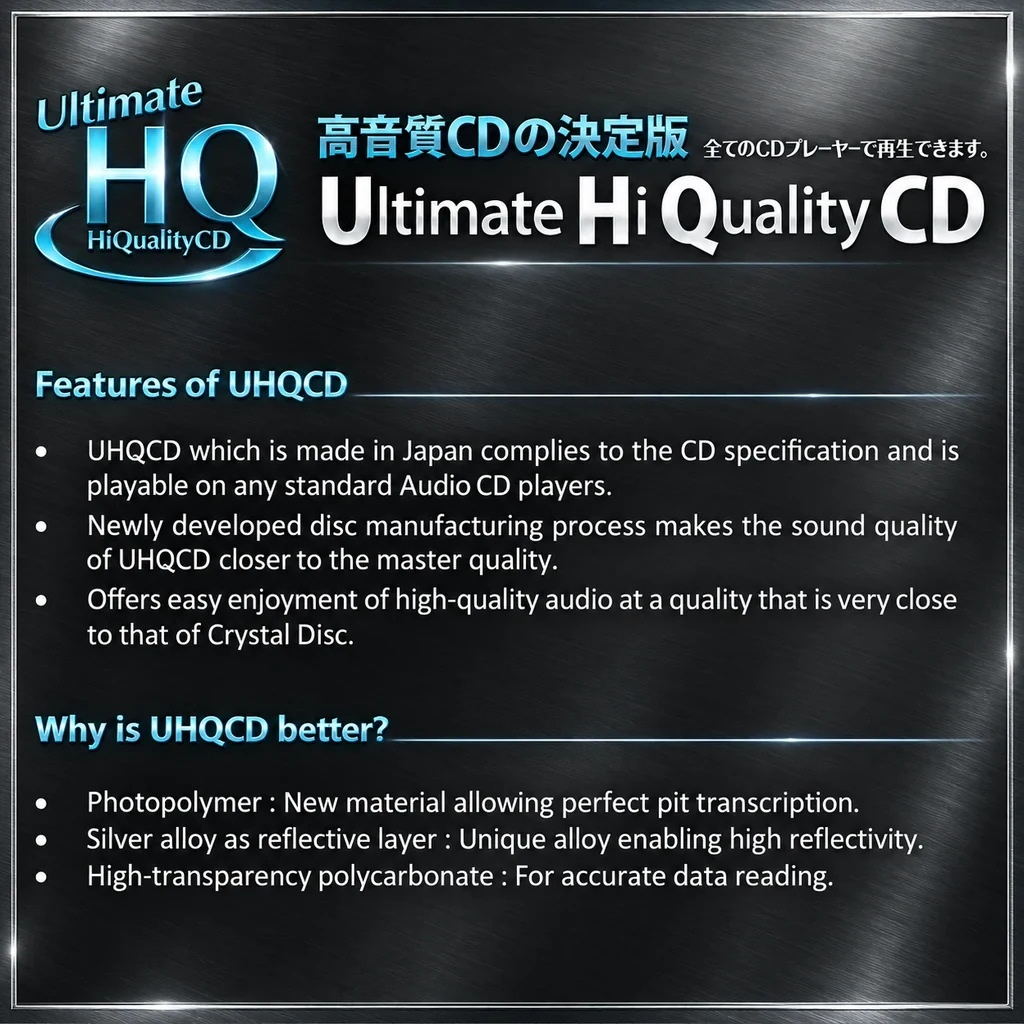

CD-DA compatiblePhotopolymer-cast data layerProtective polycarbonateMade in Japan for selected editions
CD compatibility and special editions
UHQCD is not the same as MQA-CD.
UHQCD describes the disc's physical manufacturing method. MQA-CD refers to optional digital encoding on some releases. A disc can be UHQCD without being MQA-CD, and vice versa.
MQA-encoded discs can generally deliver CD-compatible playback on ordinary players; additional decoding requires compatible equipment. Always check the specifications of the individual album before describing it as MQA-CD.

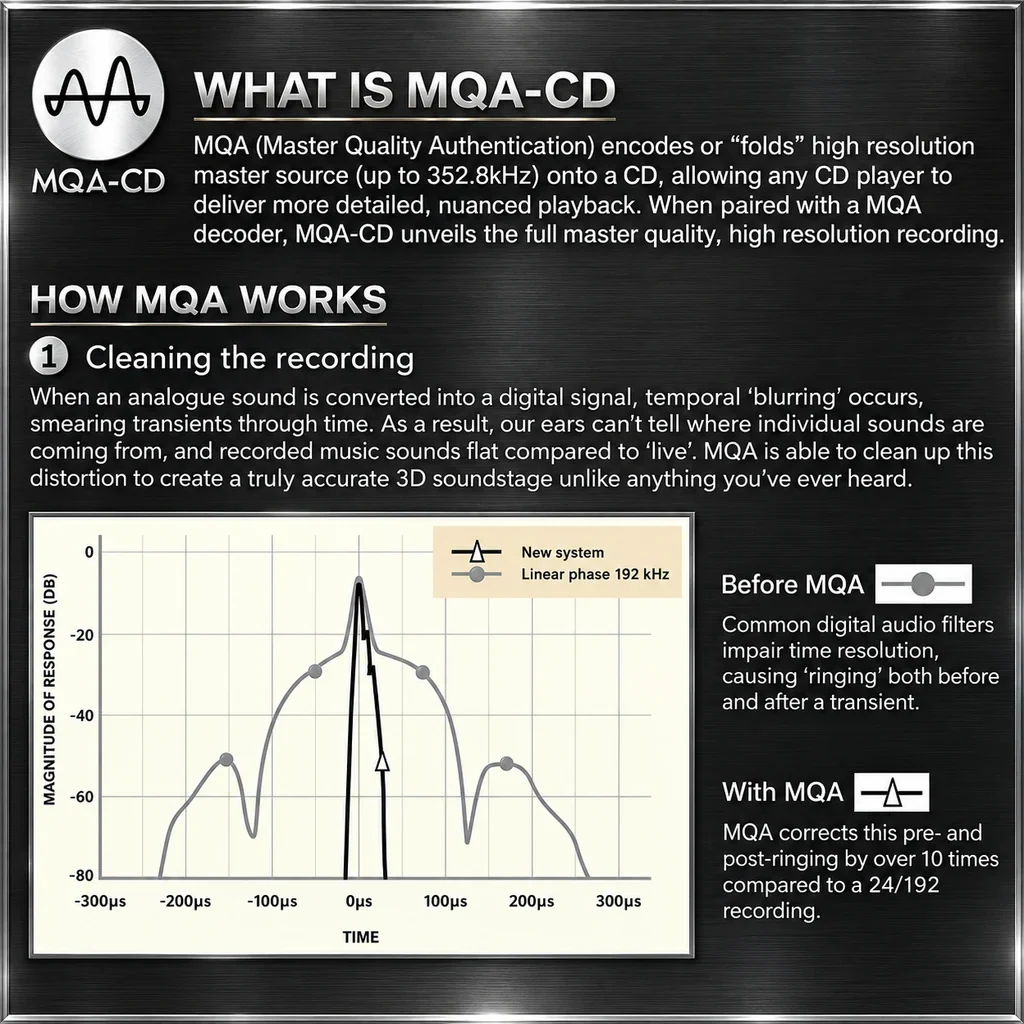

MQA-CD is a separate encoding technology, shown here for comparison.
A closer look
The UHQCD manufacturing story.

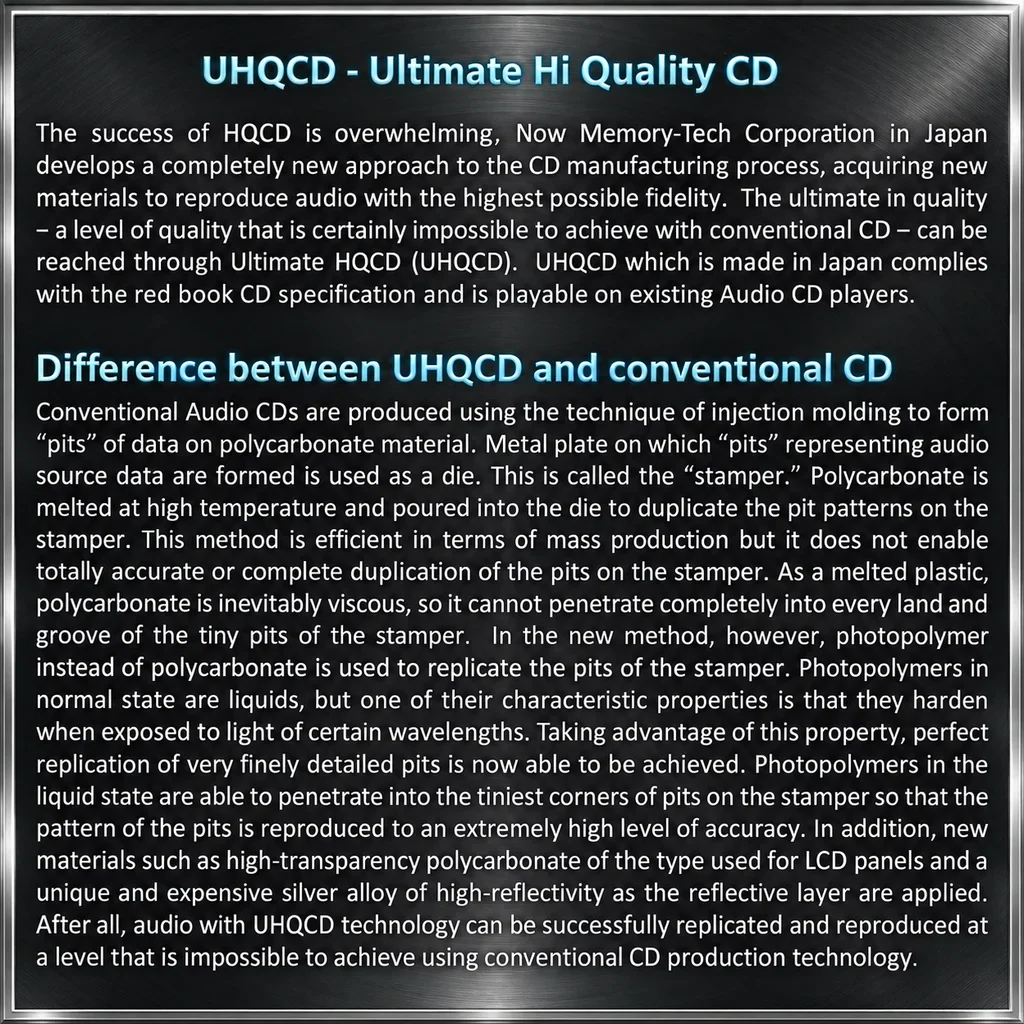

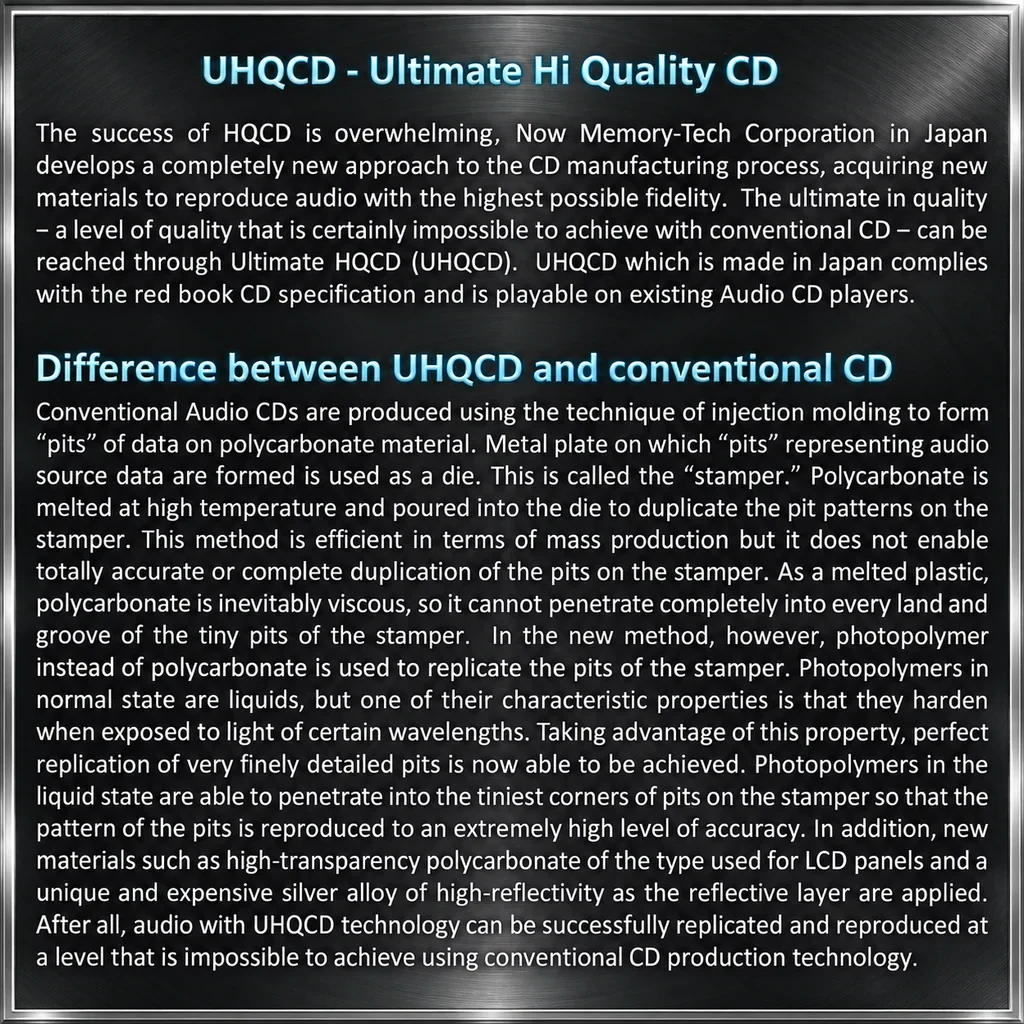

Technical overview of injection moulding and castingUHQCD feature summary and materials overview
AudioNautes Recordings · Gold Series
Respecting the original source.
AudioNautes Recordings specialises in carefully produced physical reissues, often drawing on original analogue master tapes or professional copies. Gold Series releases may feature numbered editions, Japanese manufacture and luxury packaging.
The name Gold Series describes an edition or packaging identity. It does not automatically indicate a gold reflective layer. Likewise, source provenance, mastering approach, numbering and packaging should be checked for each specific album.
